Pilots never stop learning. We bring you beautifully-designed and technically-correct infographics, for pilots and aviation enthusiasts alike.
Use our infographics to aid your learning, prepare for your checkride, or decorate improve your flight school wall!
- Altitudes Poster
- Printable Pre-Calculated Cross-Country Log (FREE template)
- Printable Pre-Calculated E6B Wind Chart for Range/Diversions (FREE template)
- VFR Cheat Sheet (FREE download)
- Supplemental Oxygen (FREE download)
- Weight and Balance Worksheet (FREE template)
- Flight Categories (FREE download)

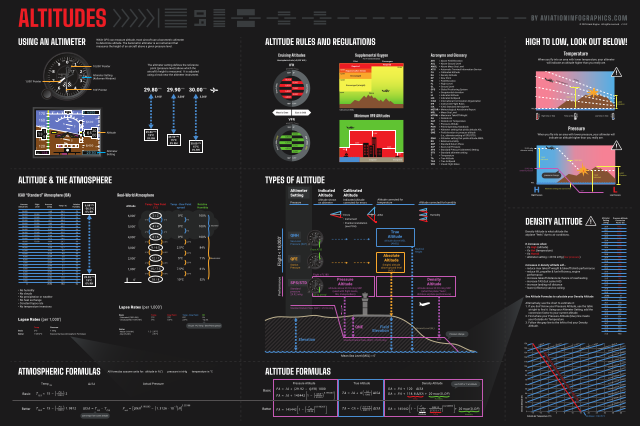

Infographic #1: Altitudes Poster
This poster is all about Altitudes. It is designed to be consistent with the FAA's ground curriculum for Private Pilots, and has been reviewed by a panel of FAA-licensed pilots and instructors.
The perfect study aid for your PPL checkride. Master these complex aviation concepts with easy-to-recall visual aids.
Available as 24"x36" physical wall poster OR high-res digital download
Full-poster preview:
Section details (selective previews shown below):

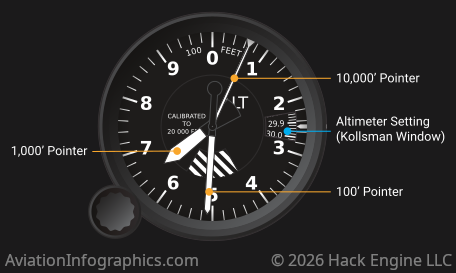

- Using an Altimeter
- Analog altimeters
- Digital altimeters
- Barometric pressure
- Altitude Rules and Regulations
- Cruising altitudes (hemispherical rule)
- Supplemental oxygen
- Minimum VFR altitudes
- Acronyms and Glossary
- Types of Altitudes (exclusive AviationInfographics.com unified graphic!)
- 6 types of altitudes (indicated, calibrated, true, absolute, pressure, density)
- 3 altimeter settings (QNH, QFE, SPS/STD)
- Altitude and the Atmosphere
- ICAO "Standard" Atmosphere (ISA)
- ISA Lapse Rates
- Real-World Atmosphere
- Real-World Lapse Rates
- Atmospheric Formulas (and rules of thumb)
- ISA temperature
- ISA deviation
- Actual pressure
- Altitude Formulas (and rules of thumb)
- Pressure altitude
- True altitude
- Density altitude
- High to Low, Look Out Below!
- Temperature (flying into a lower temperature)
- Pressure (flying into a lower pressure)

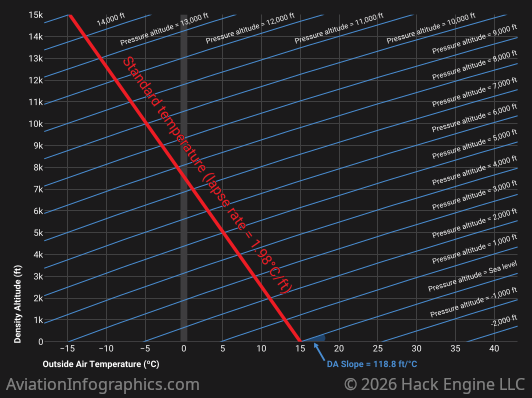

- Density Altitude
- Factors
- Effects
- Formula (and rule of thumb)
- Calculation steps and lookup chart

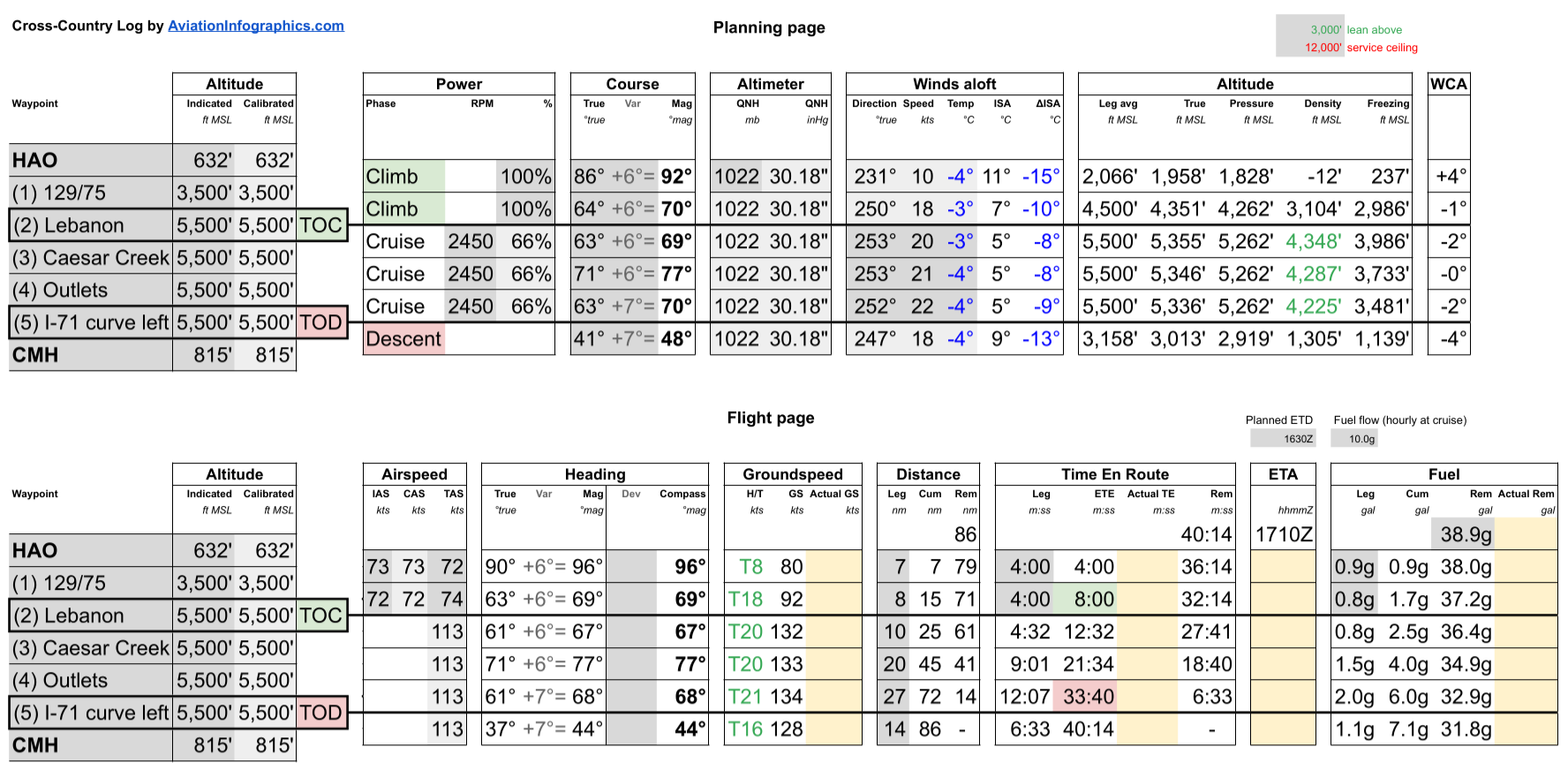

Infographic #2: Printable Pre-Calculated Cross-Country Log (FREE template)
As a service to the flying community, this infographic is a FREE template available for personal and educational use.
This is a full-featured single-page cross-country (xc) log, with one section for Planning and one for Flight.
Sections include:
- Power
- Course
- Altimeter
- Winds aloft
- Altitude
- Wind correction angle (WCA)
- Airspeed
- Heading
- Groundspeed
- Distance
- Time En Route
- Estimated Time of Arrival (ETA)
- Fuel
Our structured format does most of the heavy calculations for you, and lets you see (and remember) the relationships between each value.
Explanations of atmospheric and altitude formulas are included inside our Altitudes Poster.
Available as FREE Google Sheets template

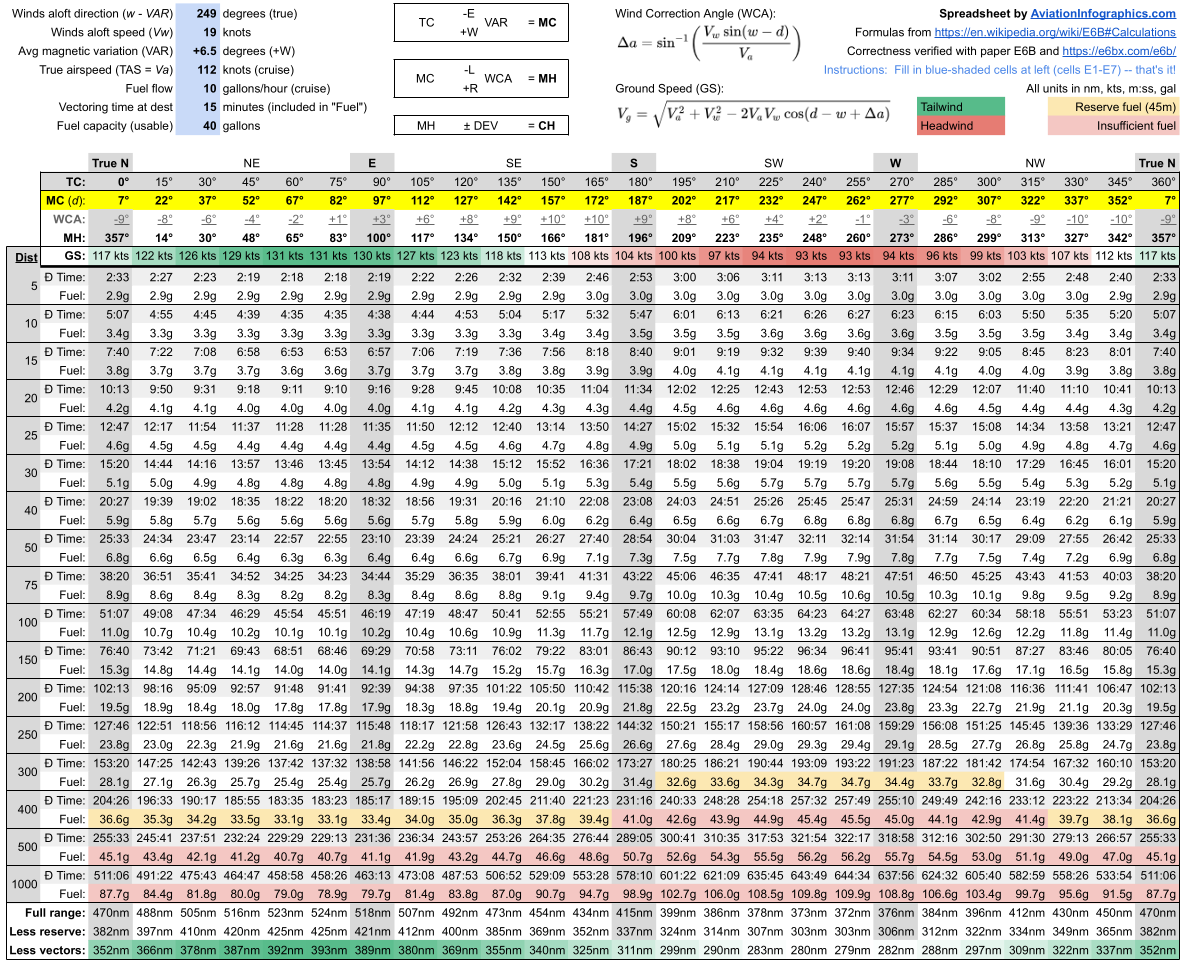

Infographic #3: Printable Pre-Calculated E6B Wind Chart for Range/Diversions (FREE template)
As a service to the flying community, this infographic is a FREE template available for personal and educational use.
Prepare and print this worksheet before any flight, and be well-prepared to make diversion range decisions at a glance.
Prior to your flight, simply fill in the 7 input fields with your flight data:
- Winds aloft direction
- Winds aloft speed
- Average magnetic variation
- True airspeed
- Fuel flow
- Vectoring time at dest
- Fuel capacity (usable)
Print the worksheet before your flight for easy reference.
When needing to divert, start with your desired True Course. If you have sufficient fuel to fly the Distance to your new destination, then accept the diversion, and fly the yellow-highlighted Magnetic Course (or Magnetic Heading).
Available as FREE Google Sheets template

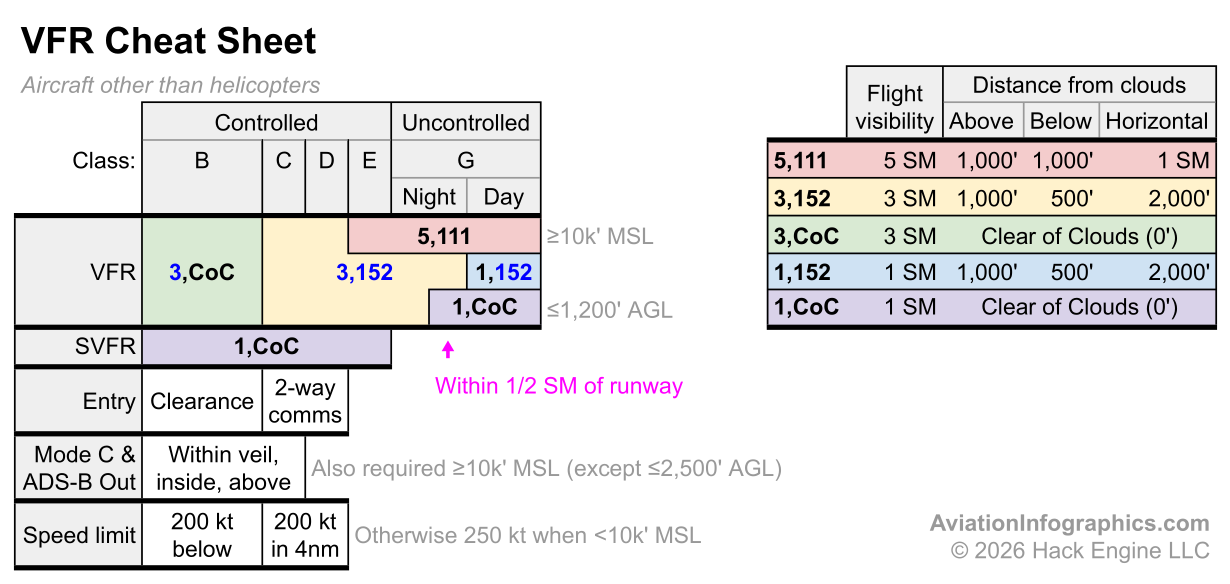

Infographic #4: VFR Cheat Sheet (FREE download)
As a service to the flying community, this infographic is a FREE download available for personal and educational use.
It summarizes the key concepts and regulations surrounding Visual Flight Rules (VFR) flight operations, including:
- Controlled and uncontrolled airspaces
- Day and night
- Weather requirements for VFR
- Weather requirements for Special VFR (SVFR)
- Airspace entry requirements
- Transponder (Mode C and ADS-B out) requirements
- Speed limits
Our structured format lets you visually see (and remember) these complex mappings.
Available as FREE high-res digital download

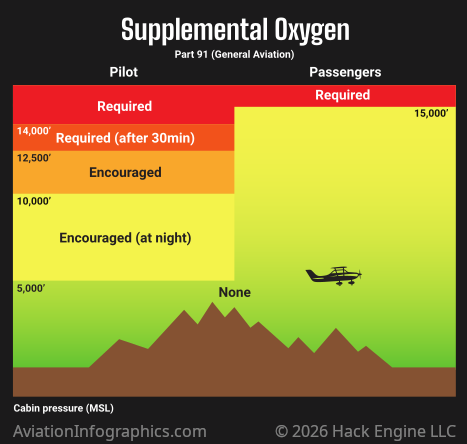

Infographic #5: Supplemental Oxygen (FREE download)
As a service to the flying community, this infographic is a FREE download available for personal and educational use.
It summarizes the key concepts and regulations surrounding supplemental oxygen use in general aviation, including the PHAK and AIM guidance encouraging use above 10,000' MSL (or 5,000' at night).
Available as FREE high-res digital download

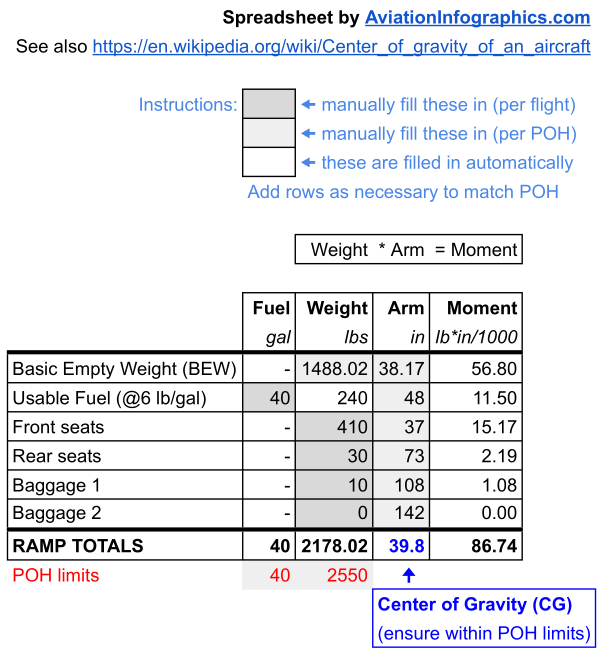

Infographic #6: Weight and Balance Worksheet (FREE template)
As a service to the flying community, this infographic is a FREE template available for personal and educational use.
Use this worksheet to assist with weight and balance (W&B) calculations before each flight.
Our structured format works with any POH, and lets you see (and remember) the relationships between each value.
Available as FREE Google Sheets template

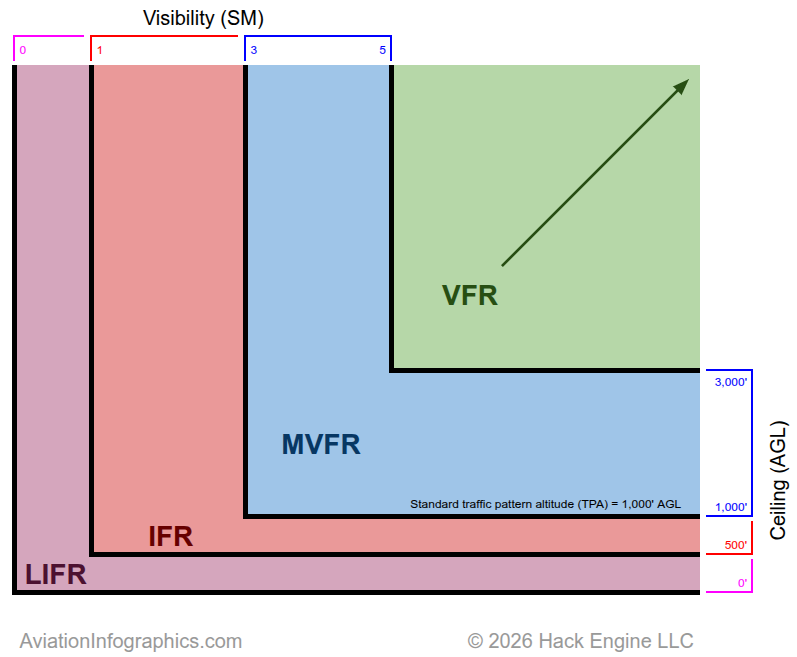

Infographic #7: Flight Categories (FREE download)
As a service to the flying community, this infographic is a FREE download available for personal and educational use.
It summarizes the definitions of flight categories (VFR, MVFR, IFR, LIFR) as they pertain to ceiling and visibility.
Available as FREE high-res digital download
Future Infographics
Check back soon!
